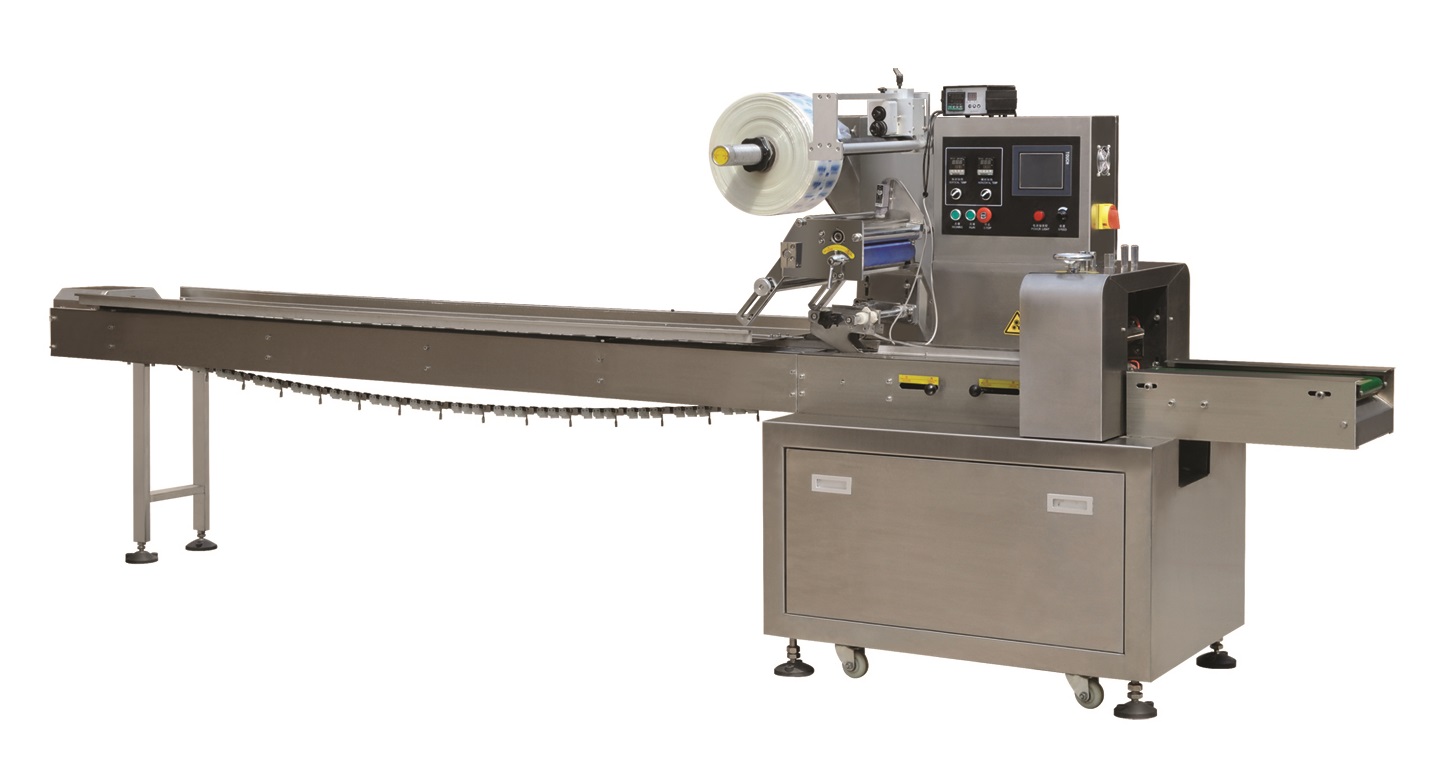

Horizontal Flow Wrapping Packing Machine

Horizontal Flow Wrapping Packing Machine can seal cellophane film around the product one at a time.

Packing speed: 45-180 bags/min

Bag size: 65-450mm(Length), 30-200mm(Width)

Power: 2.4/2.7/3.0 KW

Pouch type: Pillow, Gusset, Hole Punch, Horizontal sealing serration, Straight cut, Zig-zag cut, Tear Notch, Vertical sealing serration

Delivery Time: 35 working days.

Payment Term: T/T, L/C, PayPal, Western Union

Packing: Wooden case

  Contact Now
Product Details

Features of Horizontal Flow Wrapping Packing Machine:

1. Adopt three servo motors control, flexibly cutting bag length, needn't adjust the unloading working, saving time and packing films.

2. PLC display operation, convenient and quick parameter setting.

3. Self-diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking and digital input cut position can make the sealing&cutting more accurate.

5. Separate PID temperature control suits for various packing materials.

6. All the controls operate by software, convenient for function adjusting and upgrading.

Horizontal Flow Wrapping Packing Machine

Optional Devices of Horizontal Flow Wrapping Packing Machine:

1. Lateral feed device

2. Straight feed device

3. Belt material conveyor

4. End sealing auxiliary conveyor

5. Auxiliary material feeding device

6. Materia cut prevents device

7. Perforating device

8. Angle folding device

9. Date Printer

10. Labelling machine

Application of Horizontal Flow Wrapping Packing Machine:

Horizontal Flow Wrapping Packaging Machine is suitable for packing various kinds of large-size regular objects into pillow bags or gusseted bags, like Food, Vegetables and Fruits, hardware, Hotel Supplies, Stationary, Electric Products, Medical, Daily use and etc.

1. Food: cake, bread, biscuits, cookies, meat muffin, flaky pastries, moon cake, several sausages in a bag, noodles, beef jerky, egg roll, etc.

2. Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes, peppers, cucumbers, etc.

3. Hardware: hinge, stainless steel pipe, bearings, screw, nuts, washer, etc

4. Hotel Supplies: soap, disposable comb, tooth paste and brush in one set.

5. Stationary: pencil, eraser, notebook, paper card, adhesive tape, etc.

6. Electric Products: battery, USB cable, earphone, user manual, and accessories in one set.

7. Medical: face mask, glove, gauze, capsule, disposable syringe, etc.

8. Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several straws in a bag, gift, cups, bottles, napkin, baby diaper, etc.

Horizontal Flow Wrapping Packing Machine

Specification of Horizontal Flow Wrapping Packing Machine:

Bag making length65-300mm180-450mm180-450mm
Bag making width30-100mm50-180mm90-200mm
Production height5-40 mm5-50mm10-80mm
Packing speed45-180bag/min45-150bag/min45-120bag/min
Power specification2.4kw/220V, 50/60Hz2.7kw/220V, 50/60Hz3.0kw/220V, 50/60Hz
Overall dimension4000x920x1500mm4100x1050x1560mm4100x1050x1560mm
Gross weight500Kg600Kg680

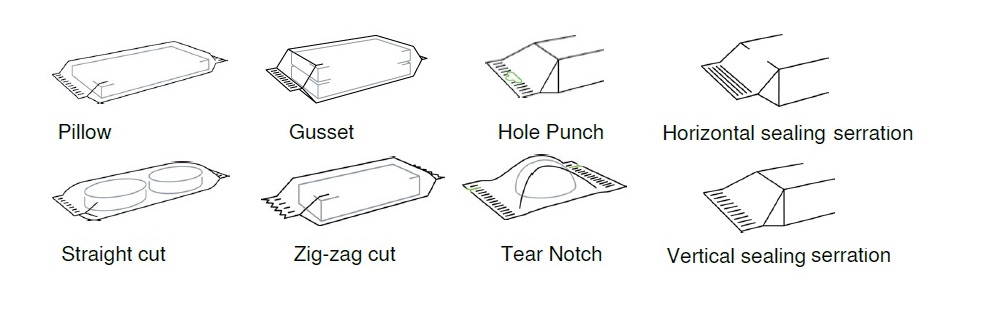

Pack Styles of Horizontal Flow Wrapping Packing Machine:

Horizontal Flow Wrapping Packing Machine

Packaging and shipping:

We use waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation;

In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.

Horizontal Flow Wrapping Packing Machine
