Beans Lentils Peas Rice Automatic Granule Packing Machine

Vertical packaging machines (VFFS) are used for the forming, filling, and sealing of plastic bags.


Product Name: Beans Lentils Peas Rice Automatic Granule Packing Machine

Max. bag width: 200-350mm

Packing speed: 30-60 Bag/Min

Power specification: 3.0/3.5/4.0KW, 220V,50/60Hz

Delivery Time:35 Working Days

Mode of transport: Shipping by sea

  Contact Now
Product Details

Beans, Lentils, Peas, Rice Automatic Granule Packing Machine

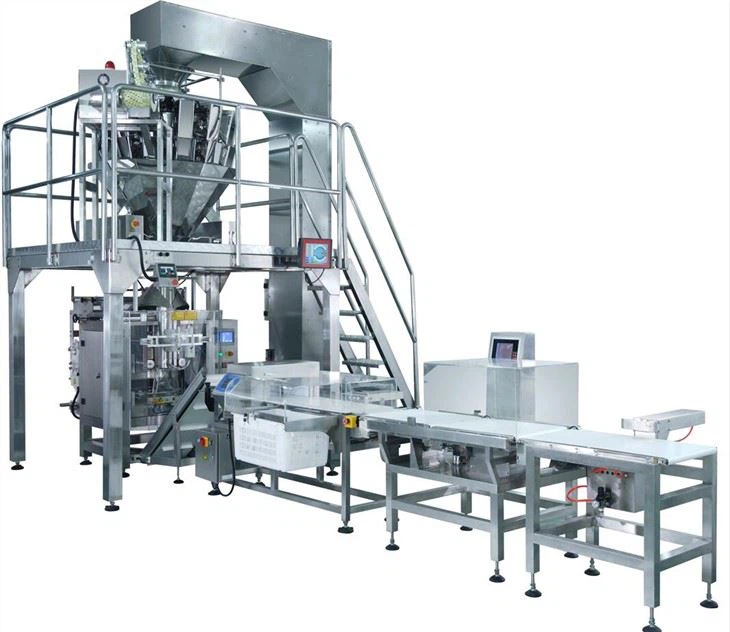

In this feature for packing pulses, the package is fashioned by way of a thermo-sealable film in the form of a roll. relying on the favored stage of automation, the packaging installation can be configured in various ways and could consist of the following composite modules:

- Vertical packaging machine (VFFS)

- Dosing device

- Conveyor

- Printing device

- Transport belt for the ready package

- Metal detector

- Check weigher

Beans, Lentils, Peas, Rice Automatic Granule Packing Machine

Work principle of Beans Lentils Peas Rice Automatic Granule Packing Machine:

Vertical packaging machines (VFFS) are used for the forming, filling, and sealing of plastic bags.

The working method of this machine type is the following:

1. the machine is loaded with a roll of film and will be used for the forming of the final package. the most widely used are thermo-sealable films with single or double layers of PP-PP, PP-PE, PA-PE, and PE-PET.

2. the film is folded to the shape of a sleeve by the package-forming system or the so-called forming collar.

3. The machine draws the formed sleeve downwards, while it concurrently closes the bottom and the vertical seal of the package by heated sealing elements.

4. The machine starts to fill with the product already sealed in the bottom sleeve by the forming collar. The filling with the product is commonly automated by a dosing device (filler).  According to the specifics of the product, the machine can be equipped with different types of dosing devices.

5. After the dosed product is placed in the package, which is closed from below, the sealing elements close the upper part of the package (simultaneously closing the bottom part of the next package) and cut the ready package.



Depending on the size of the package and the desired capacity, the customer can choose between the following models of vertical packaging machines, appropriate for working with pulses:

Model

HX-420

HX-520

HX-720

Max. bag width

200mm

250mm

350mm

Bag length

50-300mm

80-350mm

100-450mm

Film thickness

0.04-0.08mm

0.04-0.08mm

0.05-0.1 mm

Packing speed

30-60bag/min

30-60bag/min

10-30bag/min

Accuracy

<±1-2

<±1-2

<±2-3

Power specification

3.0kw/220V,50/60Hz

3.5kw/220V,50/60Hz

4.0kw/220V,50/60Hz

Air consumption

0.6m2/min

0.6m2/min

0.7m2/min

Overall dimension

3500x2000x3700mm

3500x2000x3900mm

3500x2000x4100mm

Gross weight

700Kg

750Kg

800Kg

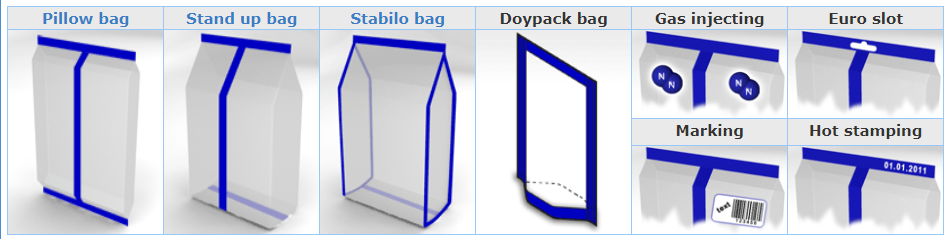

Depending on the desired bag type, the vertical packaging machine is equipped with different types of formers. The bags that could be formed by this type of machine:

Beans, Lentils, Peas, Rice Automatic Granule Packing Machine

Beans, Lentils, Peas, Rice Automatic Granule Packing Machine



Packaging and shipping of Beans Lentils Peas Rice Automatic Granule Packing Machine:

We use waterproof film multi-layer winding machine and then use wooden boxes for packaging, which can effectively prevent moisture and collision during transportation;

In transportation, we use sea transportation, of course, you can also choose other transportation methods.

After purchase, we will ship it to you as soon as possible. The exact arrival time will vary according to the distance. You can consult online customer service or leave us a message, and we will reply to you in time.

Beans Lentils Peas Rice Automatic Granule Packing Machine
